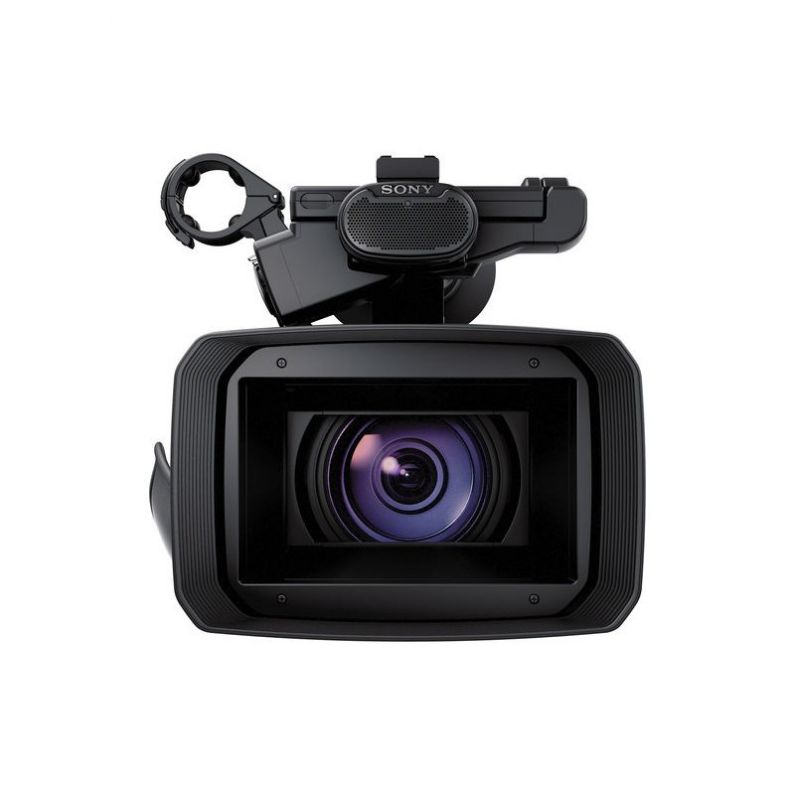

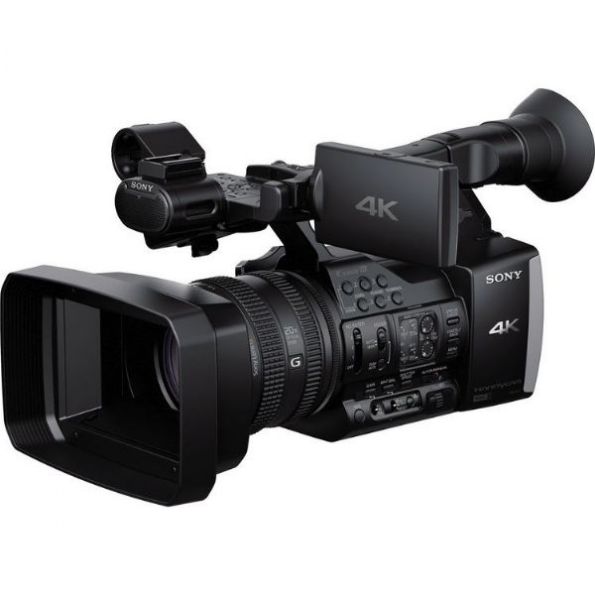

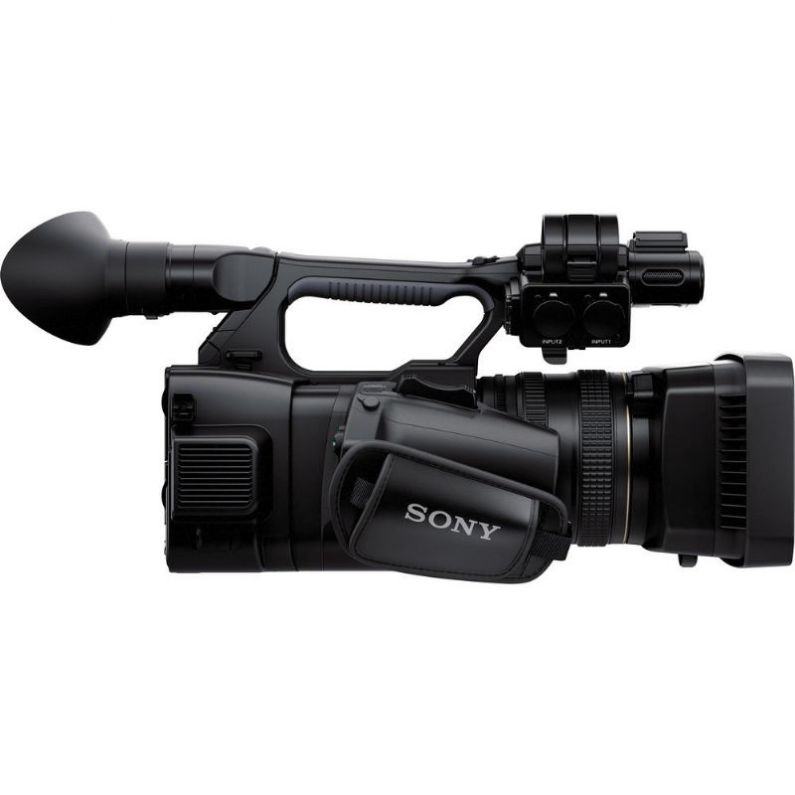

Sony FDR-AX1 Digital 4K Video Camera Recorder
Item: 22192
Availability: In Stock
Shipping Info: Ships in 1-2 Business Days
Condition: New
Protection Plans:
Total Savings: $660.99
Need Help? Call Us: 855-715-6766
-
Extended Warranty Protection Plans
Batteries & Chargers
Filters & Filter Kits
Memory & Digital Media
Precision Lenses
Bags & Cases
Flashes, Lights & Lighting Kits
Microphones & Light Meters
Tripods & Monopods
Tripods & Monopods
Lens Cleaning & Care
Screen Protectors & Cleaning Kits
-
The Sony FDR-AX1 Digital 4K Video Camera Recorder is the first consumer 4K video camera from Sony. They've used the technology developed for their professional video cameras to create a compact, easy-to-operate 4K consumer model that's designed to make 4K video and professional-quality audio available to the masses. The FDR-AX1's powerful image processor is identical to the high-performance processors found in Sony's professional video cameras. By incorporating an image processor that can handle 4K video at 60 fps into a consumer camcorder, everyone will be able to document important family moments, get creative with friends, record sporting events and capture the world around them in lifelike detail. The FDR-AX1's native 3840 x 2160 4K resolution enables you to create movies with four times as much detail and quadruple the image quality of a Full HD 1080p camcorder. Plus, this model features a back-illuminated 8.3MP Exmor R CMOS image sensor that works in concert with the processor so you can record at the maximum frame rate - even when shooting 4K video. This means that even your high-speed action shots and sports videos will be clear, sharp and detailed.
Features
-Record 4K 3840 x 2160p Video at 60 fps
-1/2.3" Exmor R 8.3MP CMOS Image Sensor
-Sony G Lens with 20x Optical Zoom
-Built-In Microphone & Dual Pro XLR Jacks
-Dual XQD Card Slots for 4K Recording
-XAVC-S Format for 150 Mbps 4K Recording
-Three ND Filters & Five Paint Functions
-Independent Zoom, Focus & Iris Rings
-Seven Assignable Buttons & HDMI Output
-Supports TRILUMINOS Color Technology -
Sensor
1/2.3" back-illuminated Exmor R CMOS sensor
Pixel Gross
Approx. 18,900,000 pixels
Effective Pixels
Approx. 8,300,000 pixels
Color Filter System
RGB primary color filters
Lens
Sony G Lens
Image Stabilization
Optical SteadyShot image stabilization
Aperture
f/1.6 - f/3.4
Focal Length
4.1 - 82 mm
35mm Equivalent Focal Length
31.5 - 630 mm
Optical Zoom
20x
Filter Diameter
72 mm
Minimum Focus Distance
Wide: Approx. 0.4" (1 cm)
Tele: Approx. 31.5" (80 cm)Aperture Blade
6 blades
ND Filter
Off
1/4
1/16
1/64Control Rings
Focus ring
Iris ring
Zoom ringRecording
Video Signal
UHDTV
HDTVVideo Format
XAVC-S format
MPEG-4 AVC/H.264Compatible Formats
XAVC-S: MP4 (4:2:0, 150 Mbps, 4K 3840 x 2160/60p)
XAVC-S: MP4 (4:2:0, 150 Mbps, 4K 3840 x 2160/50p)
XAVC-S: MP4 (4:2:0, 60 or 100 Mbps, 4K 3840 x 2160/30p)
XAVC-S: MP4 (4:2:0, 60 or 100 Mbps, 4K 3840 x 2160/25p)
XAVC-S: MP4 (4:2:0, 60 or 100 Mbps, 4K 3840 x 2160/24p)
XAVC-S: MP4 (4:2:0, 50 Mbps, HD 1920 x 1080)
AVCHD: m2ts (4:2:0, up to 28 Mbps, HD 1920 x 1080)Media Type
XQD memory card x 2
Video Resolution
4K: 3840 x 2160p at 60 fps (150 Mbps)
4K: 3840 x 2160p at 30 fps (100 Mbps)
4K: 3840 x 2160p at 30 fps (60 Mbps)
4K: 3840 x 2160p at 24 fps (100 Mbps)
4K: 3840 x 2160p at 24 fps (60 Mbps)
4K: 3840 x 2160p at 50 fps (150 Mbps)
4K: 3840 x 2160p at 25 fps (100 Mbps)
4K: 3840 x 2160p at 25 fps (60 Mbps)
HD: 1920 x 1080p at 60 fps (50 Mbps)
HD: 1920 x 1080p at 30 fps (50 Mbps)
HD: 1920 x 1080p at 24 fps (50 Mbps)
HD: 1920 x 1080p at 50 fps (50 Mbps)
HD: 1920 x 1080p at 25 fps (50 Mbps)Recording Time
50 min with 64GB XQD card (XAVC-S 3840 x 2160/60p, 150 Mbps)
150 min with 64GB XQD card (XAVC-S 1920 x 1080p/60p, 50 Mbps)Video Actual (Pixels)
Approx. 8,300,000 pixels
Audio Format
Linear PCM (48 kHz / 16-bit)
Audio Channels
2-channels
Microphone Max Input Level
120 dB SPL
Built-In Microphone
Yes (2-channel stereo microphone)
Built-In Speakers
Yes (monaural speaker)
Microphone Level Control
Yes (2 steps)
Wind Position
Yes (On/Off)
Viewfinder
Type
0.45" (1.14 cm)
Backlight
Yes
Power Mode
Yes
Display
LCD Type
3.5" (8.8 cm) Xtra Fine LCD 3D display
Pixels
1,229,000 pixels
Aspect Ratio
16:9 (wide)
Angle Adjustment
Opening Angle: 180 (max)
Turning Angle: 270 (max)Backlight
Yes (menu)
Coverage
100%
Marker
Yes
Focus Control
Focus System
Contrast AF
AF Modes
Auto
Manual (ring)Focus Area
Full range focus
Push Auto Focus
Yes
Manual Focus Assist
Magnified display for precise manual focus
Peaking displayExposure Control
Metering Modes
Multi-segment
Exposure Compensation
AE level
AE speed (menu)Noise Reduction
Yes
White Balance Modes
Auto
One Push
Outdoor
Indoor
Color TempWB Shift
Yes
Minimum Illumination
60p: 4 lux (1/30 shutter speed)
50p: 3 lux (1/25 shutter speed)Auto Iris Control
f/1.6 - f/11
Manual Iris Control
f/1.6 - f/11
Push Auto Iris
Yes
Manual Exposure Assist
Zebra pattern display
Connectivity
Memory Card Slot
XQD x 2 (for XAVC-S)
Memory Stick PRO Duo
Memory Stick PRO-HG Duo
SD/SDHC/SDXC compatible x 1 (for AVCHD)
SD/SDHC/SDXC x 1 (utility SD slot)A/V Outputs
Composite video (RCA) output x 1 (SD)
Analog audio L/R (RCA) output x 1 (SD)
HDMI output x 1 (HD/4K)USB Ports
USB 2.0 Hi-Speed (mini-B) x 1
USB 2.0 Hi-Speed Host (mass-storage type-A) x 1Headphone Jack
Stereo mini-jack x 1
Microphone Input
XLR jacks x 2 (line/mic)
DC Input
Yes
Remote Terminal
Yes
Accessory Shoe
Yes
General
Battery Type
NP-F970
Power Requirements
7.2 V (battery pack)
12.4 V (AC adapter)Power Consumption
Viewfinder (4K): 14.2 W (30p / 60 Mbps)
Viewfinder (HD): 15.4 W (60p / 50 Mbps)
LCD (4K): 14.5 W (30p / 60 Mbps)
LCD (HD): 15.7 W (60p / 50 Mbps)Dimensions (WxHxD)
7.44 x 7.6 x 14.25" (189 x 193 x 362 mm) including NP-F970 battery
Weight
5.38 lb (2.44 kg) camera only
6.1 lb (2.77 kg) camera and NP-F970 battery -
• Brand New Factory Fresh Import Model
